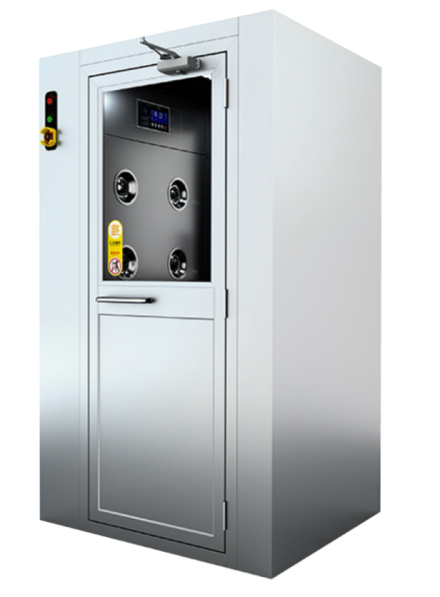

Wind Air shower room
Product Description:
An air shower room is a versatile local purification device installed between clean and non-clean rooms. When personnel and goods need to enter the clean area, they must pass through the air shower room for blowing. The clean air blown out can remove dust carried by personnel and goods, effectively blocking or reducing dust sources from entering the clean area.
Features ：
- Intelligent Type Micro Computer control panel, operation Simple. The air shower room is equipped with an intelligent touch-type Control Panel, convenient for setting modes and blowing time, Bottom Infrared automatic induction switch automatically controls air shower ；
- Equipped with primary efficiency filter and high efficiency No Partition filter, after the air is pre-filtered by the primary efficiency filter, it is pressed into the static pressure box by a low-noise centrifugal fan ， After passing through the high-efficiency filter, it is sprayed from all directions by a rotatable nozzle, effectively and quickly removing dust particles carried by personnel ；
- Spray Wind Speed ≥2 0m/s, stainless steel The nozzle can adjust the blowing direction arbitrarily ；
Common Specifications for General Purpose Models
Single-person double-blow |
Corner air shower room |
Double-person double-blow |
Air shower passage |
|
External dimensions: |
1200x1000x2050
|
1200x1200x2050
|
1200x1500x2050
|
1200x5000x2050
|
Internal dimensions: |
800x860x1910
|
800x860x1910
|
800x1360x1910
|
800x4860x1910
|
Suitable number of people: |
1 person |
1~2 people |
2~3 people |
Passage type |
Stainless steel nozzle: |
12
|
12
|
24
|
60
|
Number of filters: |
1 set
|
1 set
|
1 set |
1 set
|
Power: |
1000 Wx1PCS |
1000 Wx1PCS |
1000 Wx5PCS |
|
System: |
Intelligent air shower system
|
|||

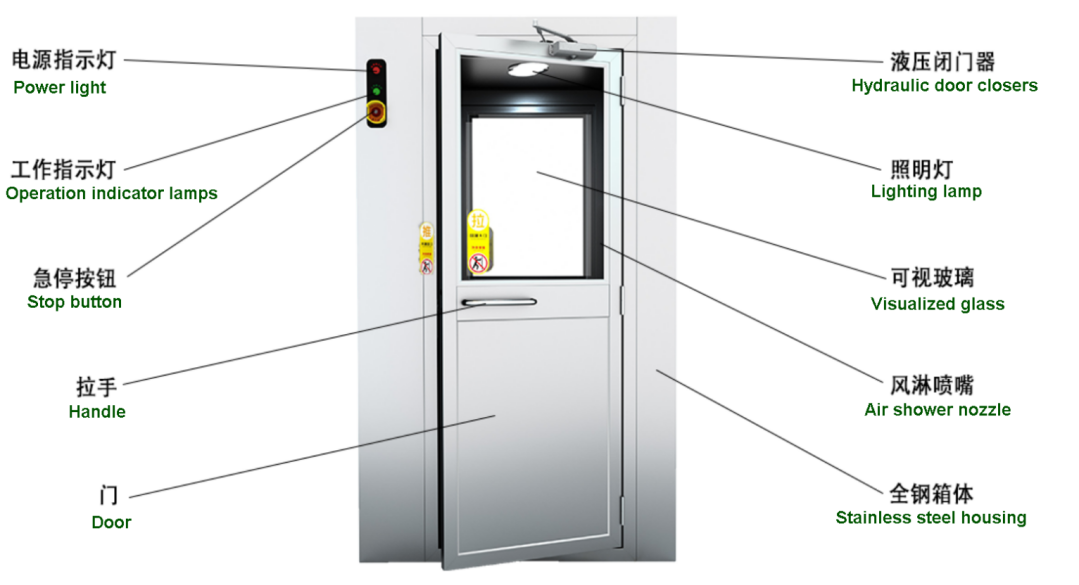

Indicator lights: |
Working indicator light, power indicator light, emergency stop button |
|||
Air shower time: |
0~99 seconds adjustable |
|||
Nozzle diameter: |
30mm
|
|||
Air speed: |
≥20m/s
|
|||
Filtration efficiency: |
≥0.3μm dust particle size ≤3.5 particles (Class 100, US Federal Standard 209E)
|
|||
Power/Voltage: |
Three-phase AC 380V/50Hz |
|||
Material: |
External cold-rolled steel plate baking paint, internal 201/304 stainless steel, full 201/304 stainless steel |
|||
