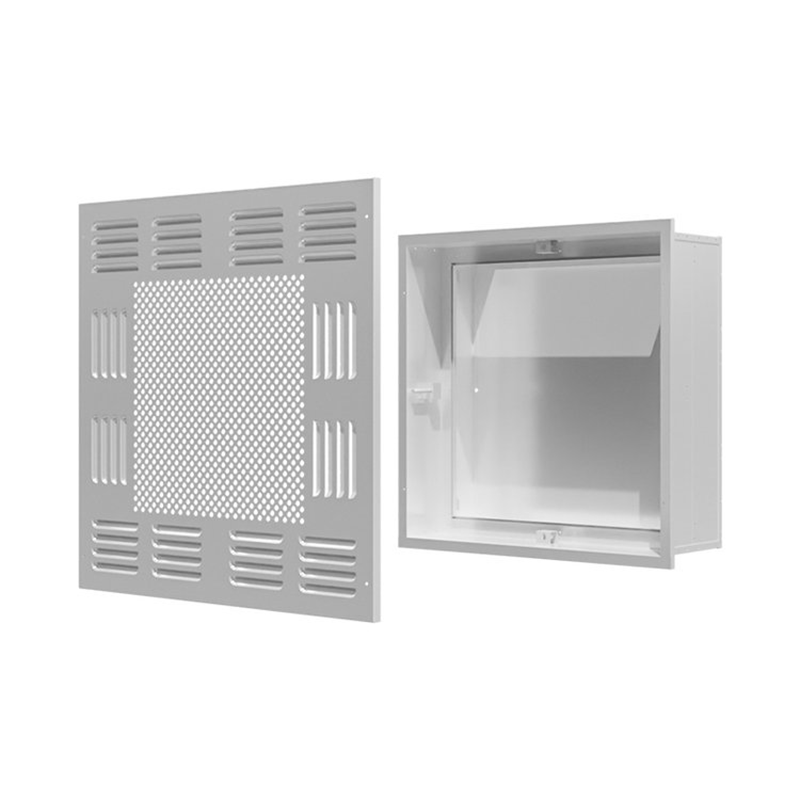

High-efficiency air supply outlet

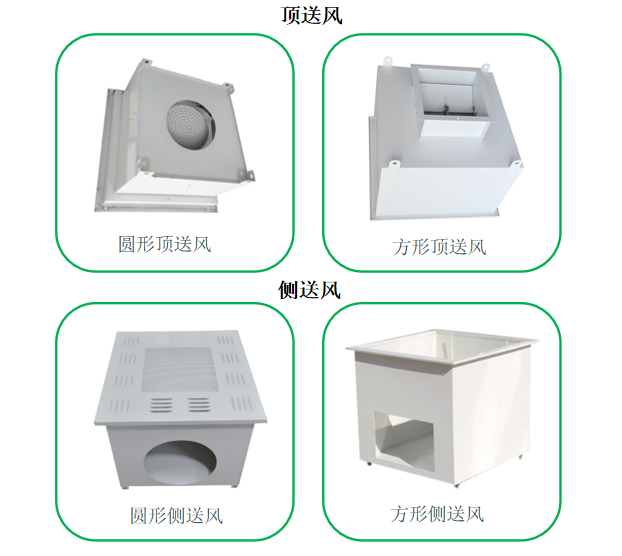

High-efficiency air supply outlets are terminal filtration devices used for the renovation and construction of clean rooms of various levels from 1000 to 300,000 levels. They are key equipment that meet purification requirements; high-efficiency air supply outlets include a static pressure box, diffuser plate, high-efficiency filter, and duct interface, Inlet Top or side connection is available. Widely used in the ventilation systems or ventilation systems or purification air conditioning systems in the pharmaceutical, medical, electronics, and chemical industries.
Technical Parameters
|
|||
Main Materials |
Housing
|
Optional materials: 1) Galvanized aluminum zinc plate 2) Cold-rolled steel sheet, welded and painted 3) All stainless steel material |
|
Diffuser Plate
|
Optional materials: 1) Stainless steel 2) Cold-rolled steel sheet, welded and painted |
||

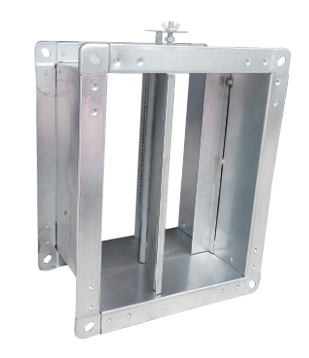

Control Valve
|
1) Square control valve |
|
|
| 2) Round control valve | |||
High-efficiency filter |
1) High-efficiency filter with partition 2) High-efficiency filter without partition |
||
Other Configurations |
Optional: Pressure gauge and leak detection connection |
||
Specifications
|
||||||
Model |
Rated air volume |
Suitable filter size |
Housing dimensions / Top air supply / Side air supply
|
Inlet size (round hole)
|
Inlet size (square hole)
|
Diffuser plate size |
(CMH)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
||
350~500
|
320*320*69/80/90
|
370*370*280/400
|
DN200
|
425*425*20
|
||
FRS-HAB-GXK320-Y500
|
500
|
320*320*220
|
370*370*450/500
|
DN200
|
200*200
|
425*425*20
|
FRS-HAB-GXK484-W1000
|
800~1000
|
484*484*69/80/90
|
534*534*280/450
|
250*250
|
589*589*20
|
|
FRS-HAB-GXK484-Y1000
|
1000
|
484*484*220
|
534*534*450/550
|
DN250
|
250*250
|
589*589*20
|
1000
|
610*610*150
|
660*660*380/500
|
DN250
|
250*250
|
715*715*20
|
|
FRS-HAB-GXK630-W1500
|
1200~1500
|
630*630*69/80/90
|
680*680*280/450
|
DN300
|
400*250
|
735*735*20
|
FRS-HAB-GXK630-Y1500
|
1500
|
630*630*220
|
680*680*450/550
|
DN300
|
/
|
735*735*20
|
FRS-HAB-GXK630-Y1500
|
1500
|
630*630*220
|
680*680*450/550
|
/
|
400*250
|
735*735*20
|
FRS-HAB-GXK1220-W2000
|
1800~2000
|
1220*610*69/80/90
|
1270*660*350/520
|
DN350
|
400*250
|
1325*1325*20
|
FRS-HAB-GXK968-Y2000
|
2000
|
968*484*220
|
1018*534*500/670
|
DN350
|
/
|
1073*1073*20
|
FRS-HAB-GXK968-Y2000
|
2000
|
968*484*220
|
1018*534*500/580
|
/
|
500*250
|
1073*1073*20
|
FRS-HAB-GXK968-Y3000
|
3000
|
1260*630*220
|
1310*680*500/580
|
/
|
630*250
|
1365*735*20
|
