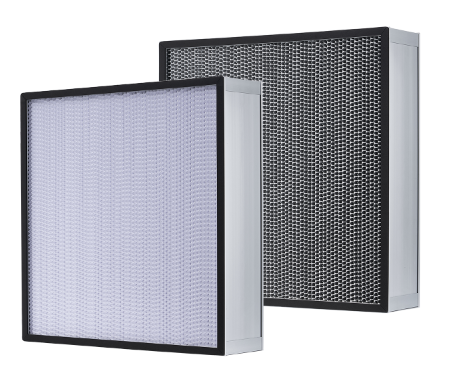

Deep Pleated HEPA Filter
Features:

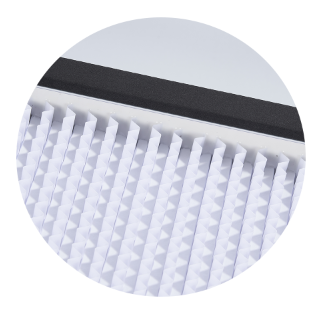

Ultra-fine glass fiber paper ensures the excellent filtration efficiency throughout its operational life.
Box type, single-header or double-header structure are available for the frame
Individual leakage test according to EN1822, and delivered with the appropriate test certificate
Low airflow velocity resistance and good air flow penetration uniformity
High arrestance efficiency and long working life (majorly capture of particles of 0.3 or 0.5 μm)
Application：
Deep pleated HEPA filter are widely used in terminal filtration in environments and industries requiring extremely high levels of cleanliness, such as electronics and semi-conductor manufacturing, precision machinery, pharmaceuticals, hospitals, food and beverage industry.
Technical Parameters | |||
Main materials | Filter media | Ultrafine glass fiber filter paper or Artificial fiber filter paper or PTFE | |
Separators | Double corrugated cardboard or aluminum foil corrugated | ||
Outer frame | Aluminum alloy frame / Galvanized iron frame / Stainless steel frame / Wooden frame | ||
Sealant glue | Two-component AB glue | ||
Gasket | EVA | ||
Filtration grade | E10、E11、E12、H13、H14 ( EN1822:2009 ) | Filtration object | ≥ 0.3 μm or ≥ 5 μm particles |
MERV16~20 (ASHRAE52.2) | Temperature resistance | ≤ 90 ℃ | |
ISO 15E, ISO 20E, ISO25E, ISO30E, ISO35H,ISO45H ( ISO29463 ) | Instantaneous temperature resistance | ≤100 ℃ | |
Moisture resistance | ≤100%RH | ||
Model | Normal Size(mm) | Rated air volume | Initial resistance (Pa) at different air velocities Width W*Height H* | ||
W *H* D | 0.25m/s | 0.5m/s | 0.75m/s | ||
FRS-PTYG | 320*320*220 | 400 | ≤120 | ≤220 | ≤240 |
484*484*220 | 1000 | ||||
610*610*150 | 1000 | ||||
630*630*220 | 1500 | ||||
610*610*292 | 2000 | ||||
Note : other specifications are available upon request. | |||||

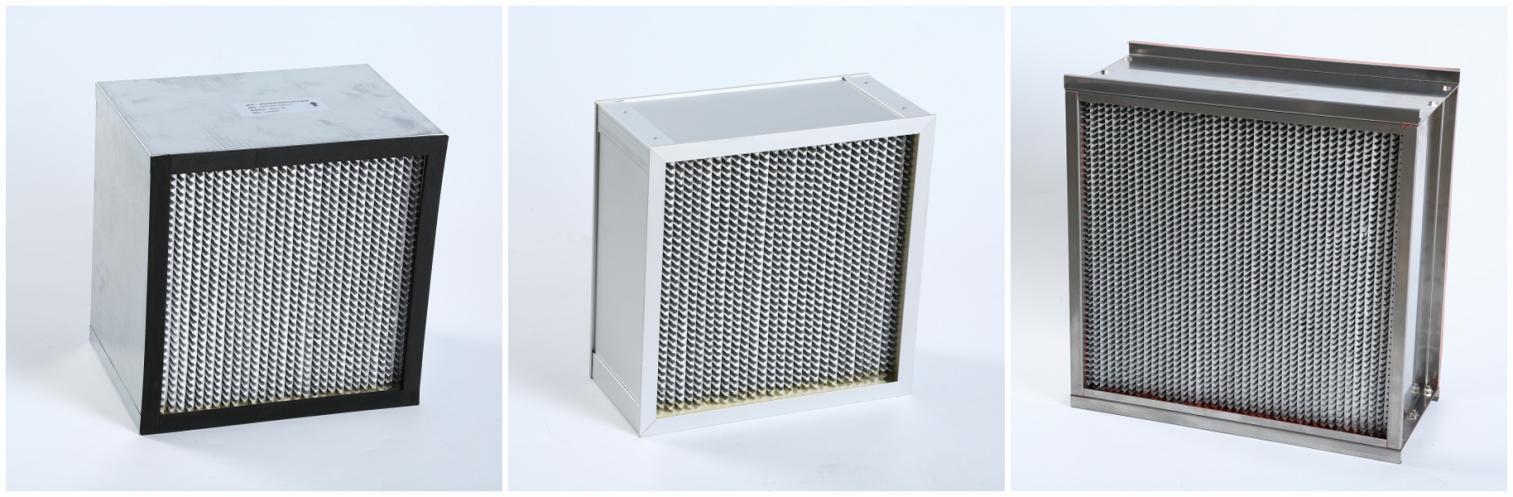

Box type structure outer frame C-style box structure outer frame Double turned flange box outer frame
(double-header structure)
