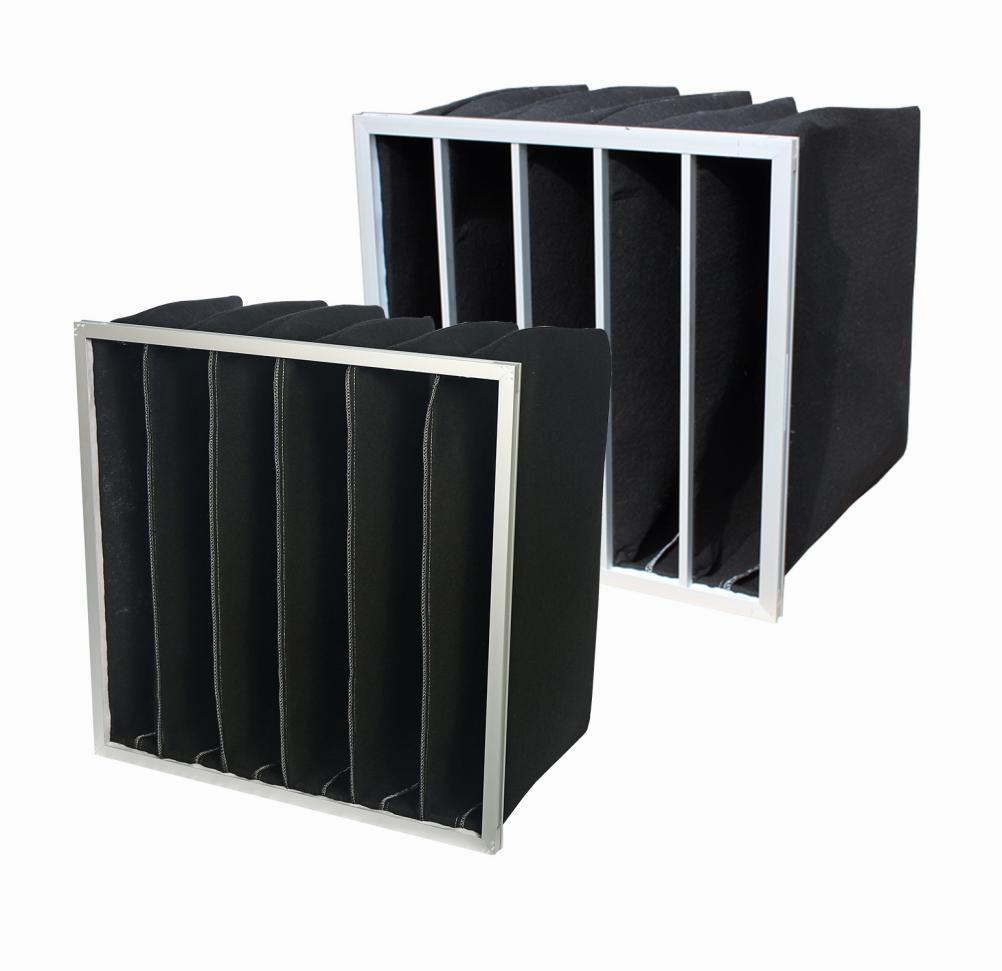

Activated Carbon Synthetic Fiber Pocket Filter
Applications: Suitable for chemistry, pharmaceuticals, food, entertainment venues, construction, and places requiring clean air, absorbing polluted air such as ammonia, methyl mercaptan, H2S, methyl methacrylate sulfide, methyl sulfide and other harmful gases such as NO2, SO2, etc.
Subcategory:
Model:
Brand:
FRESH
Activated Carbon Synthetic Fiber Pocket Filter
Application: Purification of fresh air and exhaust gas for commercial & industrial ventilation and air-conditioning system.
1.Pre-filters for cleanroom MAU system and fresh air unit.
2.Fresh air pre-filters for central air-conditioning system.
3.Air inlet pre-filters for fresh air purification equipment.
4.Exhaust emission first-level or second-level filtering.
Material and Features:
Filter materials: Activated carbon synthetic fiber media
Frame: Galvanized steel, Aluminum alloy, stainless steel or plastic/ABS.
Features: Multi-pocket design, large air flow.
Frameless design is available.
Frame and protective net are reusable.
Technical parameters:
Filtering objects: Low concentration of organics such as odors, formaldehyde, benzene and ammonia.
Filtration class: G4
Adsorption rate：≥25%
Moisture resistance (relative humidity)：≤80%RH
Temperature resistance：≤100℃
Instantaneous temperature resistance：≤120℃
| Technical specification | ||||||
Model | Normal Size | Number of pockets | Air volume / Initial resistance | |||
Height (mm) | Width (mm) | Bag depth (mm) | (m3/h / Pa) | |||
FRS-ACDS6P | 592 | 592 | 381 | 6 | 3400/40 | 4200/60 |
592 | 592 | 600 | 6 | 3400/40 | 4200/60 | |
FRS- ACDS3P | 287 | 592 | 381 | 3 | 1700/40 | 2100/60 |
287 | 592 | 600 | 3 | 1700/40 | 2100/60 | |
Note: Other specifications can be customized according to needs | ||||||
