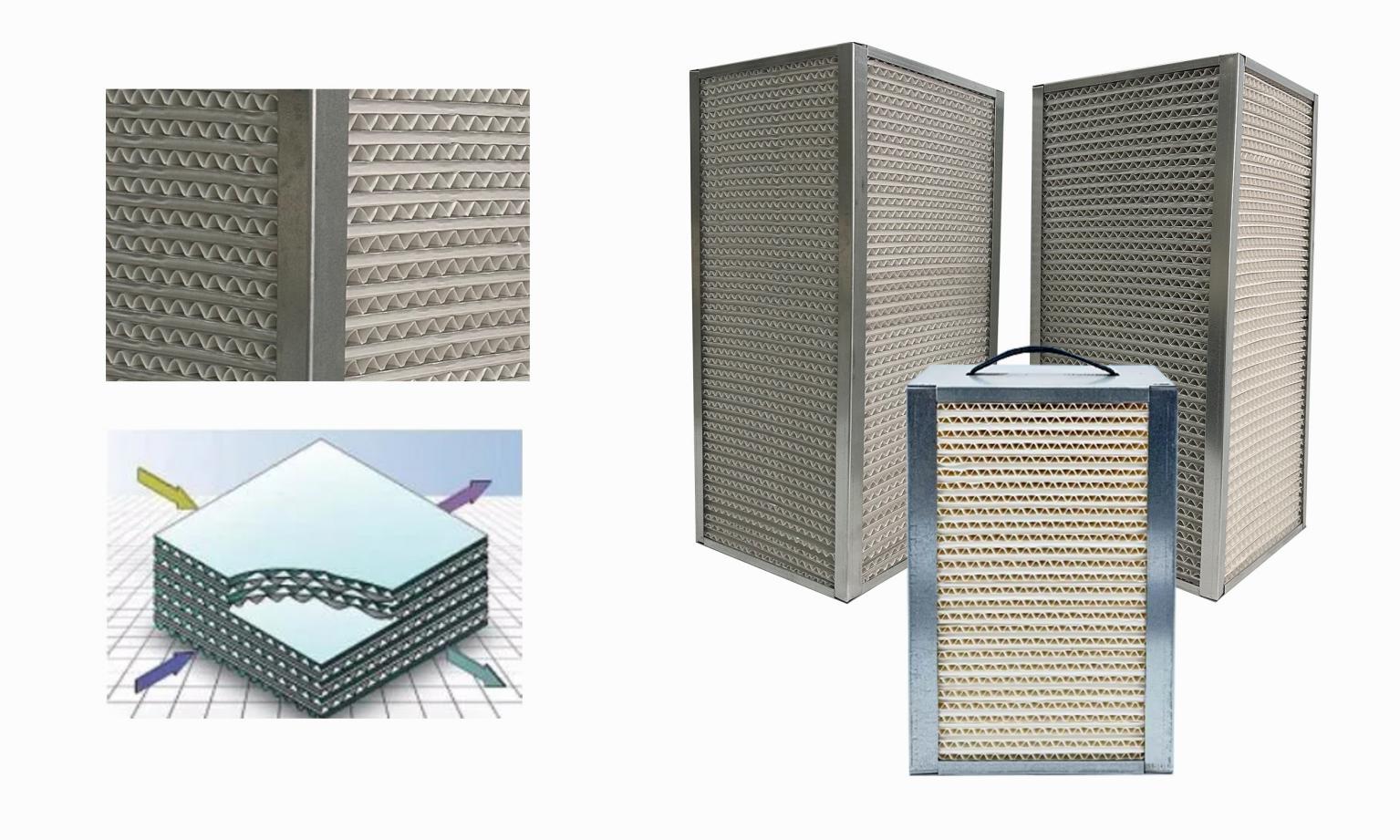

Heat Exchanger Filter Core
Working principle:
The heat exchanger filter core is the major part of air to air ventilation system.When the air is forced to pass through the heat exchanger core from two different air channels (the flat plates and the corrugated plates form channels for fresh or exhaust air stream.), the energy and humidity are transfered by the plates, so as to save the energy.
Outdoor air and exhaust air is separated by thermal conduction plate, two air streams never come into direct contact, avoid cross-contamination, make sure clean outdoor air.
Applications:
The heat exchanger filter is the core component of the fresh air system, whose main function is to recover heat and humidity. It is widely used in industrial fields such as pharmaceuticals, food, chemicals, electronics, and semiconductors. It has high efficiency in filtration and heat exchange, which can greatly improve production efficiency and product quality.
Features:
1.Base on different air channel, they can be divided into cross flow type, counter flow type and cross&counter flow type;
2.It can be divided into sensible and enthalpy heat exchanger core base on different inner material.
3.Compact structure,no running parts,strong reliability and long service life.
Technical parameters | |||
Main materials | Inner material | Heat exchanger filter paper | |
Separators | Corrugated double adhesive paper or Corrugated aluminum foil | ||
Outer frame | Galvanized sheet frame / Stainless steel frame | ||
Sealant glue | Two-component AB glue | ||
Max working pressure | 800Pa | Heat recovery efficiency | 70% |
Pressure drop | 10~600 Pa | Temperature resistance | ≤90℃ |
Air flow | 100~60000m³ /h | Instantaneous temperature resistance | ≤100℃ |
Filtration grade | E10、E11、E12、H13、H14 ( EN1822:2009 ) | Humidity resistance | ≤100%RH |
Normal Size (mm) | W220*D220*H475 | Note: Other specifications are available upon request | |
Normal Specification | |||
Model | Section Szie A*B(mm) | Height (mm) | Pleat height (mm) |
FRS-HEFC | 140*140 | 7mm | |
170*170 | |||
200*200 | |||
220*220 | |||
250*250 | ≤800 | ||
275*275 | |||
300*300 | |||
330*330 | |||
400*400 | |||
440*440 | |||
Note: In addition to the above fixed specifications, other specifications can be customized according to requirements. | |||
