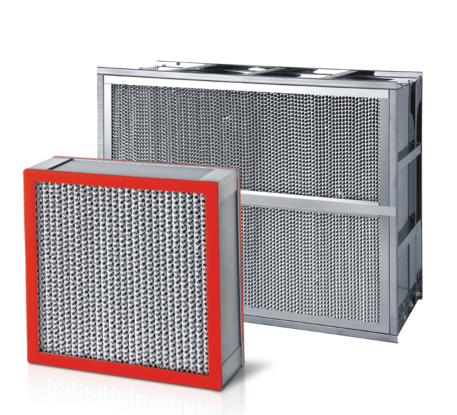

High-temp Deep-pleat HEPA Filter
Subcategory:
Model:
Brand:
FRESH
High-temp. Deep-pleat HEPA Filter
Features :
1.Specifically designed for ovens and other high-temperature applications environment;
2.High temp resistance, can work under the temperature 250-450℃;
3.Box type, single-header or double-header structure are available for the frame;
4.Individually tested for certified performance.
Application：Commercial and industrial ventilation systems, end filter of air conditioning systems
1.Clean room fresh air conditioning system, end filter of clean room
2.Terminal filter of ventilation with high fire-proof / high temp resistance working condition
3.Widely application in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries
Technical Parameters | |||
Main Materials | Filter material | High-temp resistance ultra-fine fiberglass filter paper | |
Separators | Corrugated aluminum foil | ||
Outer Frame | Aluminum alloy frame / Galvanized sheet frame / Stainless steel frame | ||
Sealant glue | High-temperature resistance sealant glue | ||
Gesket | High-temperature resistance strip | ||
Filtration Grade | E10、E11、E12、H13、H14 ( EN1822:2009 ) | Filtration Object | ≥ 0.3 μm or ≥ 5 μm particles |
MERV16~20 (ASHRAE52.2) | Max Operating Temperature | ≤250℃ / ≤350℃ / ≤450℃ | |
ISO 15E, ISO 20E, ISO25E, ISO30E, ISO35H,ISO45H ( ISO29463 ) | Humidity Resistance | ≤100%RH | |
Specifications | |||||
Model | Normal Sizes | Rated Airflow (m3/h) | Initial pressure drop (Pa) | ||
W*H*D (mm) | 0.25m/s | 0.5m/s | 0.75m/s | ||
FRS-HTYG | 320*320*220 | 400 | ≤120 | ≤220 | ≤240 |
484*484*220 | 1000 | ||||
610*610*150 | 1000 | ||||
630*630*220 | 1500 | ||||
610*610*292 | 2000 | ||||
Note: Other specifications are available upon request. | |||||
PRODUCTS
CONTACT
D4 Fenggong Area Nansha Village Danzao Town Nanhai District , Foshan City, Guangdong PR. China.
High-temp. Deep-pleat HEPA Filter
Features :
1.Specifically designed for ovens and other high-temperature applications environment;
2.High temp resistance, can work under the temperature 250-450℃;
3.Box type, single-header or double-header structure are available for the frame;
4.Individually tested for certified performance.
Application：Commercial and industrial ventilation systems, end filter of air conditioning systems
1.Clean room fresh air conditioning system, end filter of clean room
2.Terminal filter of ventilation with high fire-proof / high temp resistance working condition
3.Widely application in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries
Technical Parameters | |||
Main Materials | Filter material | High-temp resistance ultra-fine fiberglass filter paper | |
Separators | Corrugated aluminum foil | ||
Outer Frame | Aluminum alloy frame / Galvanized sheet frame / Stainless steel frame | ||
Sealant glue | High-temperature resistance sealant glue | ||
Gesket | High-temperature resistance strip | ||
Filtration Grade | E10、E11、E12、H13、H14 ( EN1822:2009 ) | Filtration Object | ≥ 0.3 μm or ≥ 5 μm particles |
MERV16~20 (ASHRAE52.2) | Max Operating Temperature | ≤250℃ / ≤350℃ / ≤450℃ | |
ISO 15E, ISO 20E, ISO25E, ISO30E, ISO35H,ISO45H ( ISO29463 ) | Humidity Resistance | ≤100%RH | |
Specifications | |||||
Model | Normal Sizes | Rated Airflow (m3/h) | Initial pressure drop (Pa) | ||
W*H*D (mm) | 0.25m/s | 0.5m/s | 0.75m/s | ||
FRS-HTYG | 320*320*220 | 400 | ≤120 | ≤220 | ≤240 |
484*484*220 | 1000 | ||||
610*610*150 | 1000 | ||||
630*630*220 | 1500 | ||||
610*610*292 | 2000 | ||||
Note: Other specifications are available upon request. | |||||
