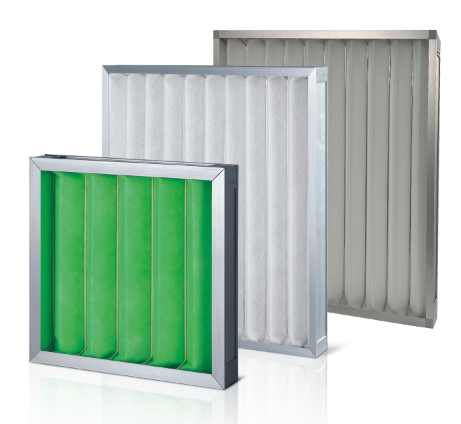

Dual Rack Foldaway Pre- filter
Features:
1.Sturdy structure, durable and long-lasting
2.Suitable for high humidity conditions
3.Washable material is available for your option, the filter can be reusable after being flushed.
4.An optional detachable design allows for the reused of the outer frame and keel rack.
5.Economical Pre-filter
Application: Pre-filtration for commercial and industrial ventilation systems and air conditioning systems.
1.Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2.Primary filtration of central air conditioning system.
3.Pre-filtration at the inlet of Air purification equipment.
4.Pre-filtration in a medium filter.
5.Primary filtration or secondary filtration in a filter system
Technology Parameters | |||
Main materials | Filter material | Standard : Polyester fiber filter cotton （ PET ） Optional: P P Non-woven fabric filter | |
Outer frame | Standard : Galvanized steel sheet Optional : Aluminum alloy / Stainless steel sheet | ||
Parent-child keel frame | Standard :Galvanized iron Optional: Baked paint iron, stainless steel | ||
Filtration grade | G2, G3, G4 ( EN779 -2012) | Filtration object | ≥ 5 μm Coarse dust or particles |
MERV4, 5, 7 (ASHRAE52.2) | Continuous Temperature resistance | ≤100 ℃ | |
Coarse40%, 60%, 70% (ISO16890) | Instantaneous temperature resistance | ≤120 ℃ | |
Specifications | ||||||
Model | Normal Dimensions | Pleats Number | Air flow rate / Initial pressure drop | |||
H (mm) | W (mm) | T (mm) | （ m3/h / Pa) | |||
FRS-BSZM-46 | 595 | 595 | 46 | 11 | 1700/18 | 3400/68 |
290 | 595 | 46 | 11 | 850/20 | 1700/70 | |
Note: Other specifications are available upon request | ||||||
