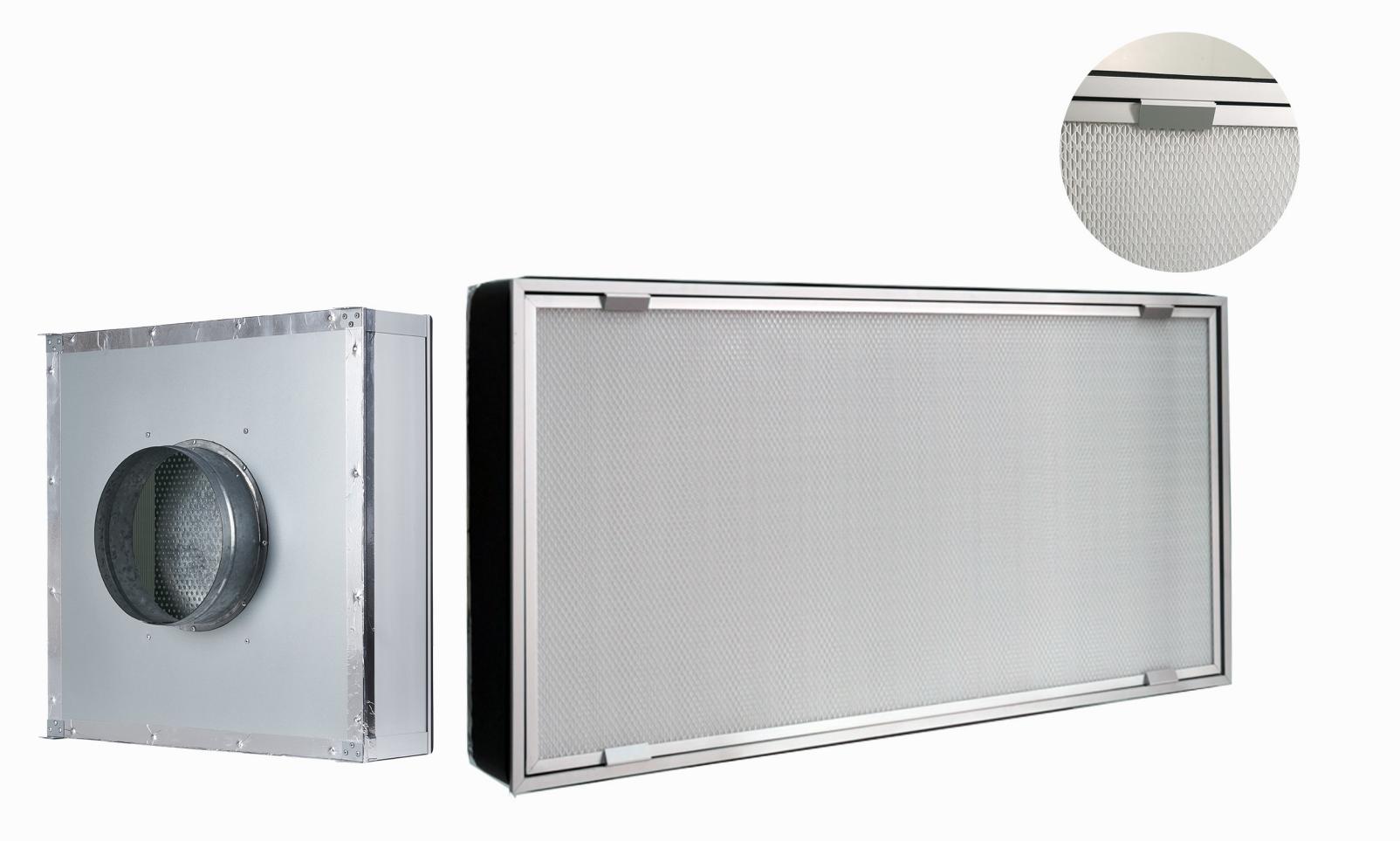

Integrated filter
Features :
One-piece aluminum top with integral pipe coupling connector
Available in replaceable and disposable (directly discardable) types
Lightweight and easy to install Energy saving and cost reduction
Low initial resistance
Applications Integrated filter Typically used in cleanroom environments, such as pharmaceutical, semiconductor, microelectronics, bio-industry, and hospital operating rooms etc. 。
Technology Parameters
|
|||||
Main materials |
Housing: |
Aluminum alloy / Galvanized iron / Stainless steel |
|||
Pipe connector:
|
Connector size
|
250/300mm
|
|||
Inlet diffuser:
|
Aluminum / Galvanized aluminum plate / Stainless steel
|
||||
Filter media: |
Ultrafine glass fiber filter paper or artificial fiber filter paper or PTFE |
||||
Separator:
|
Hot melt adhesive
|
||||
Sealant:
|
Two-component AB adhesive
|
||||
Seal gasket: |
EVA
|
||||
Protective net: |
Diamond-shaped metal painted net
|
||||
Filtration grade |
H13,H14 'U15,U16,U17 ( EN1822:2009 )
|
Filtration object |
≥ 0.1 μm or ≥ 0.3 μm or ≥ 5 μm particles
|
||
ISO35H~ ISO 75U ( ISO29463)
|
Working Temperature |
≤ 80 ℃ |
|||
≤500Pa
|
Maximum moisture resistance
|
≤100%RH
|
|||
Model |
External dimensions |
Filtration grade |
Rated air volume |
Initial resistance |
Final resistance (recommended)
|
||
FRS-TAF-IB
|
W*H*D(mm)
|
EN1822:2009
|
CFM
|
CMM
|
In W.G.
|
Pa
|
Pa
|
600*600*150
|
E11
|
586
|
16.6
|
0.96
|
245
|
≤500Pa
|
|
610*610*150
|
607
|
17.2
|
0.96
|
245
|
≤500Pa
|
||
1210*600*150
|
1210
|
34.3
|
0.96
|
245
|
≤500Pa
|
||
1220*610*150
|
1242
|
35.2
|
0.96
|
245
|
≤500Pa
|
||
600*600*150
|
H13
|
586
|
16.6
|
0.98
|
250
|
≤500Pa
|
|
610*610*150
|
607
|
17.2
|
0.98
|
250
|
≤500Pa
|
||
1210*600*150
|
1210
|
34.3
|
0.98
|
250
|
≤500Pa
|
||
1220*610*150
|
1242
|
35.2
|
0.98
|
250
|
≤500Pa
|
||
600*600*150
|
H14
|
342
|
9.7
|
0.65
|
165
|
≤500Pa
|
|
610*610*150
|
357
|
10.1
|
0.65
|
165
|
≤500Pa
|
||
1210*600*150
|
710
|
20.2
|
0.65
|
165
|
≤500Pa
|
||
1220*610*150
|
730
|
20.7
|
0.65
|
165
|
≤500Pa
|
||
Note: Custom design is available according to specific requirements
|
|||||||
