Fiberglass paint arrestor, paint stop for paint mist exhust system

FOB Reference Price:Get Latest Price
US $0.1-2 / Square Meters | 1000 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Efficiency:
90%,95%,98%
Construction:
roll,pad, roll
Filtration Grade:
Pre Filter
Medium Material:
Fiberglass
Porosity:
N/A
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FRESH
Model Number:
PA-70
Dimension(L*W*H):
Customized Size
Weight:
Standard Weight, 200G/㎡,250G/㎡,300G/㎡,380G
Certification:
EN779
Warranty:
3 Months
After-sales Service Provided:
No overseas service provided
Product name:
Fiberglass paint arrestor
Material:
Fiberglass
Air velocity:
0.7--1.75m/s
Thickness:
30 /50/75/100mm
Max.working Temp:
150℃
Flame resistance:
F-1DIN53438 UL900-Class2
Filtering Grade:
G2-G4
Color:
Green and white
Supply Ability
Supply Ability:
500000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
KRAFT PAPER+ PE BAG
Port
guangzhou ,shenzhen
Lead Time :
7-10days

             Fiberglass paint arrestor, paint stop for paint mist exhust system



 pls contact us to get the lasteat quote and more details.



Product Description





Application:



It's especially suitable for automotive/furniture paint spray booth, coating production line, etc, widely applied to filtration of high quality surface painting with the feature of high arrestance, high efficiency in absorbing extra particle during the course of painting, making air pressure more equally. It is a typical ecological material.



Features:

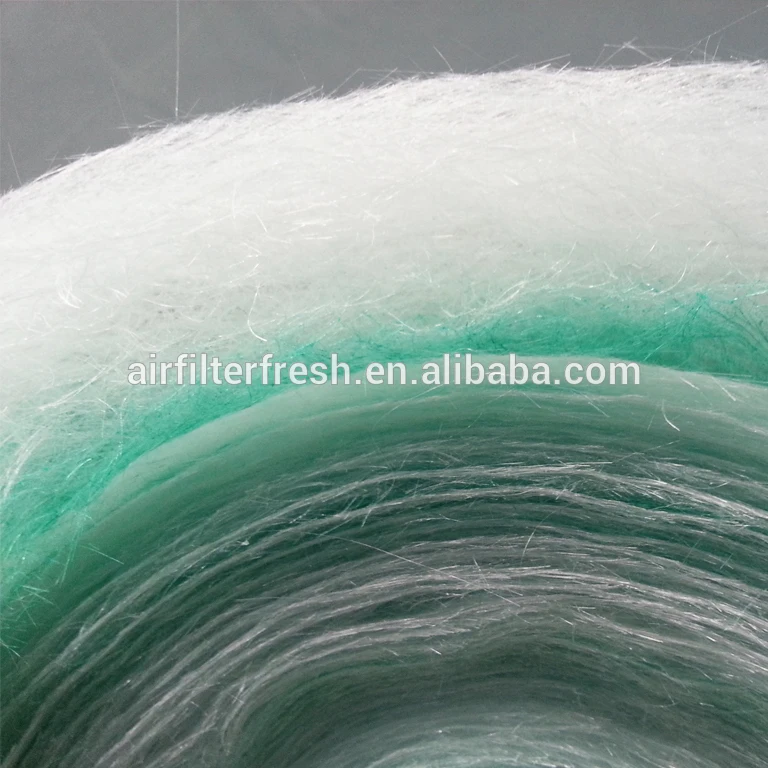

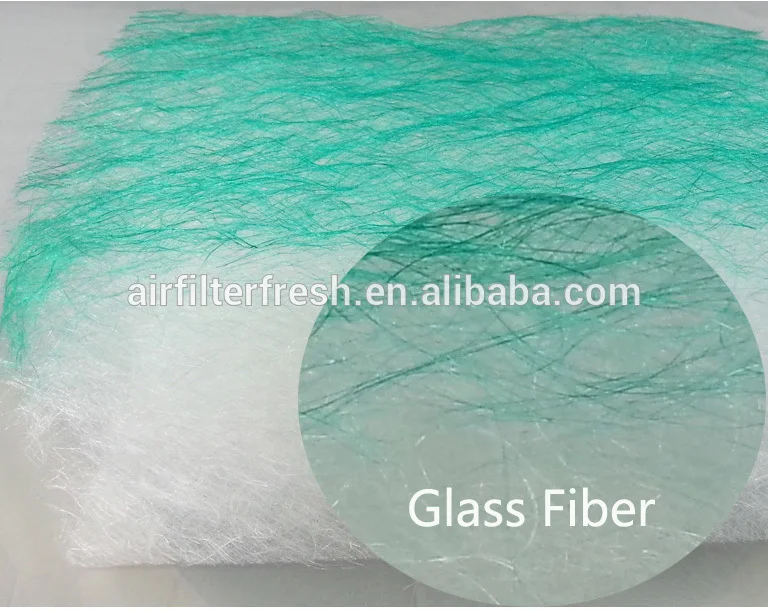

1. Green and white color fiberglass filter

2. Available in pads, rolls, and custom cut sizes

3. Filter efficiency is over 90%

4. Certified EN779

5 .Temp. resistance: 170°C

6 .Easy to change

7 .Suitable for heavy coating and woodworking applications



Specification:



Type

Dimensions

Rated air velocity(m/s)



Initial pressure drop (Pa)

Rated air flow(m2/h)

Length(m)

Width(m)

Thickness(mm)

Rolls

20

0.8/1/2

50-100

2.0

10

7200









FLOOR FILTER1.jpgFLOOR FILTER2.jpg







Packaging & Shipping





loading-floor filterloading container





Our Services

Shipping:

a. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

b. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

c. Customers specifying freight forwarders or negotiable shipping methods!

d. Delivery Time: 3-5 working days for samples; 10-15 working days for batch goods.



Payment Terms:

a. Payment: T/T, Western Union, 30% deposits; 70% balance before delivery.

b. MOQ: 10rolls

c. Warranty : 3 months

d. Package Informations: Each roll packed in a PP bag or paper, 20'Container, 40'FCL Container



Why Choose us?

a.We are Alibaba Assessed 5 years Gold Supplier.

b.10 years old factory and 7 years experience export to oversea countries.

c.We are a factory manufacturing air filters, best production capability ,best quality control, Best Service .

d.100% QC inspection Before Shippment.



Company Information

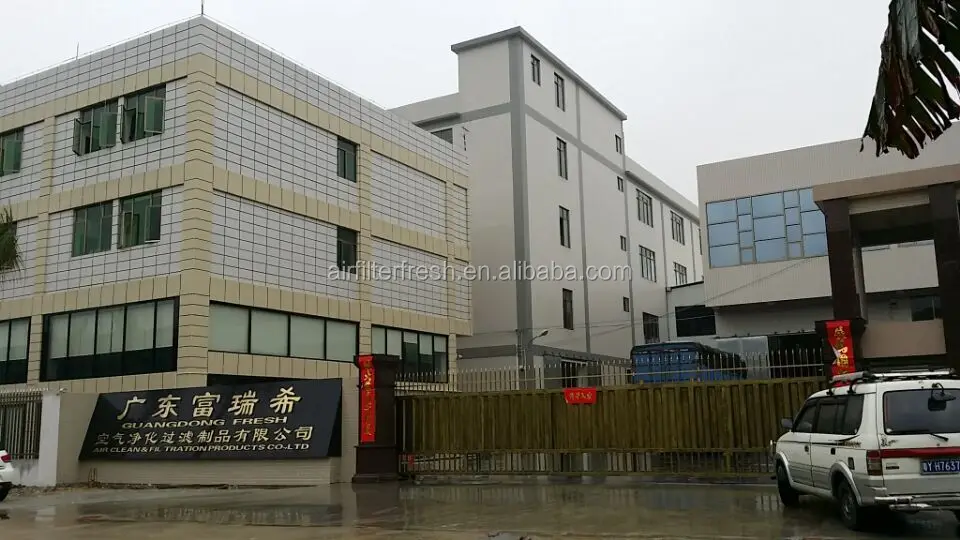

GUANGDONG FRESH  NEW FACTORY PICTURE (1)
